Here some pictures. More pictures will appear on this page as time goes by. Still needs some paint....

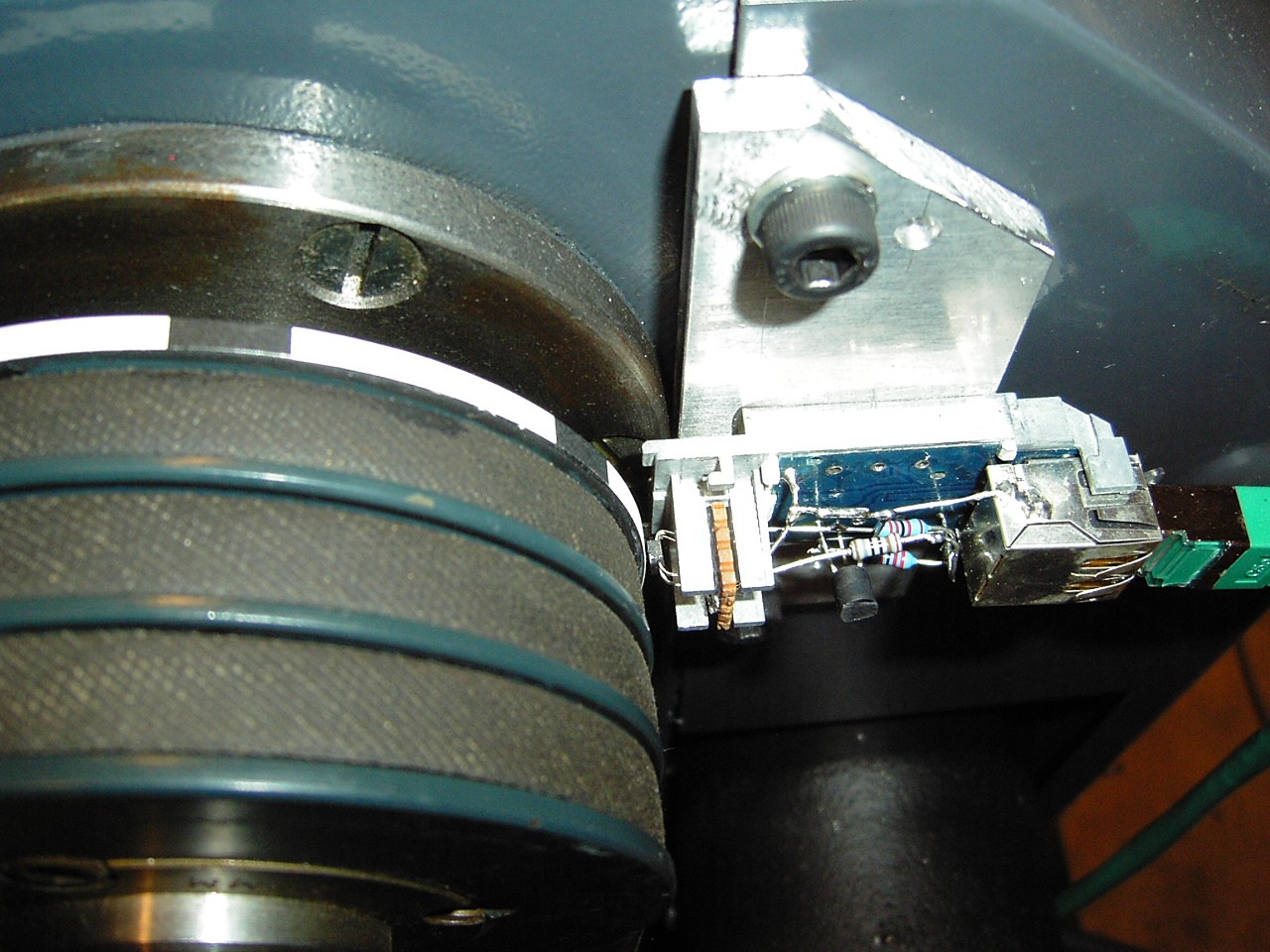

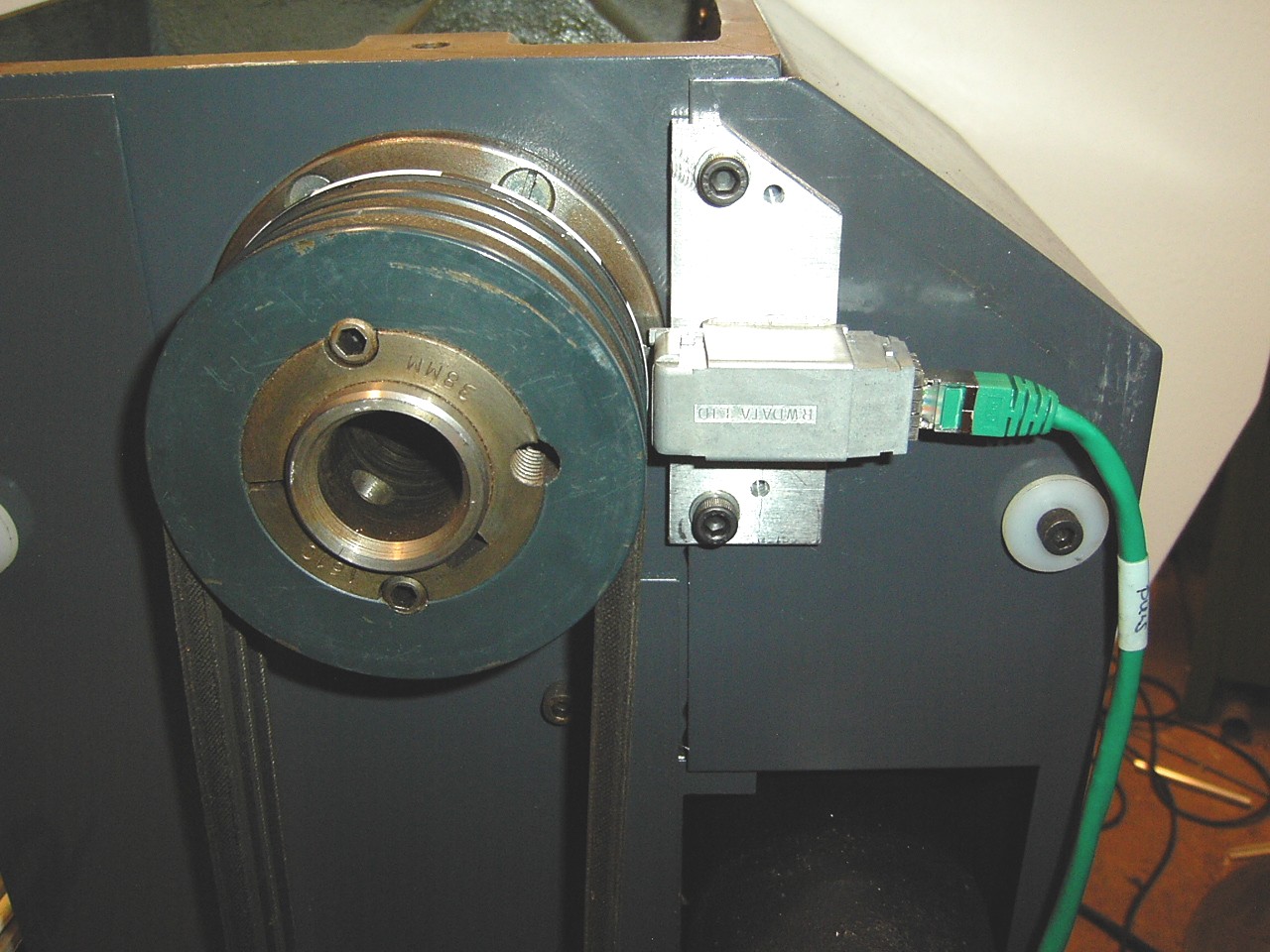

Spindle speed detection

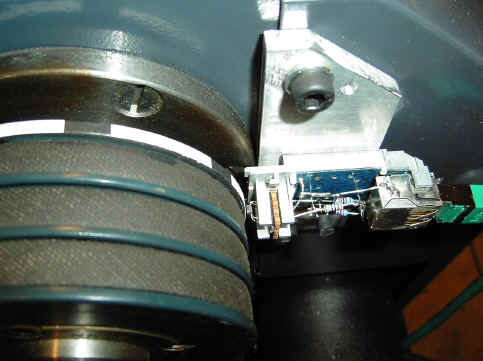

Opto reflex detector for spindle speed
Fully shielded built in components
STP/patch block is used with STP cable
as are all other signals used
ITR8307 IR-light reflection switch / transistor / 3-resistors, schematic

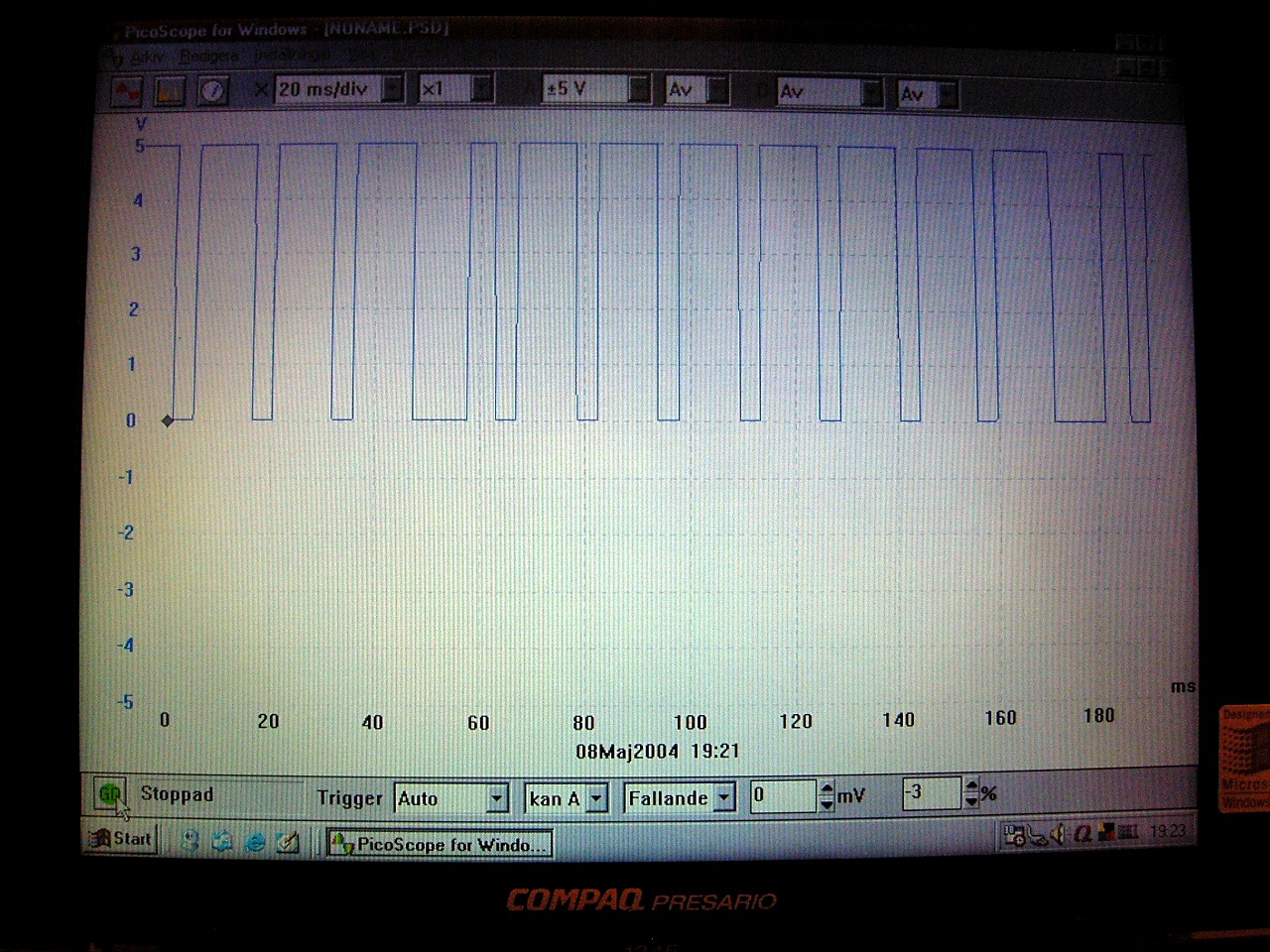

8-slot index on spindle pulley. Index easy to CAD and print                                 Scope picture of signals
Laser printed, glued on with 2-sided tape here on pulley peripheral                   (sorry for picture quality)

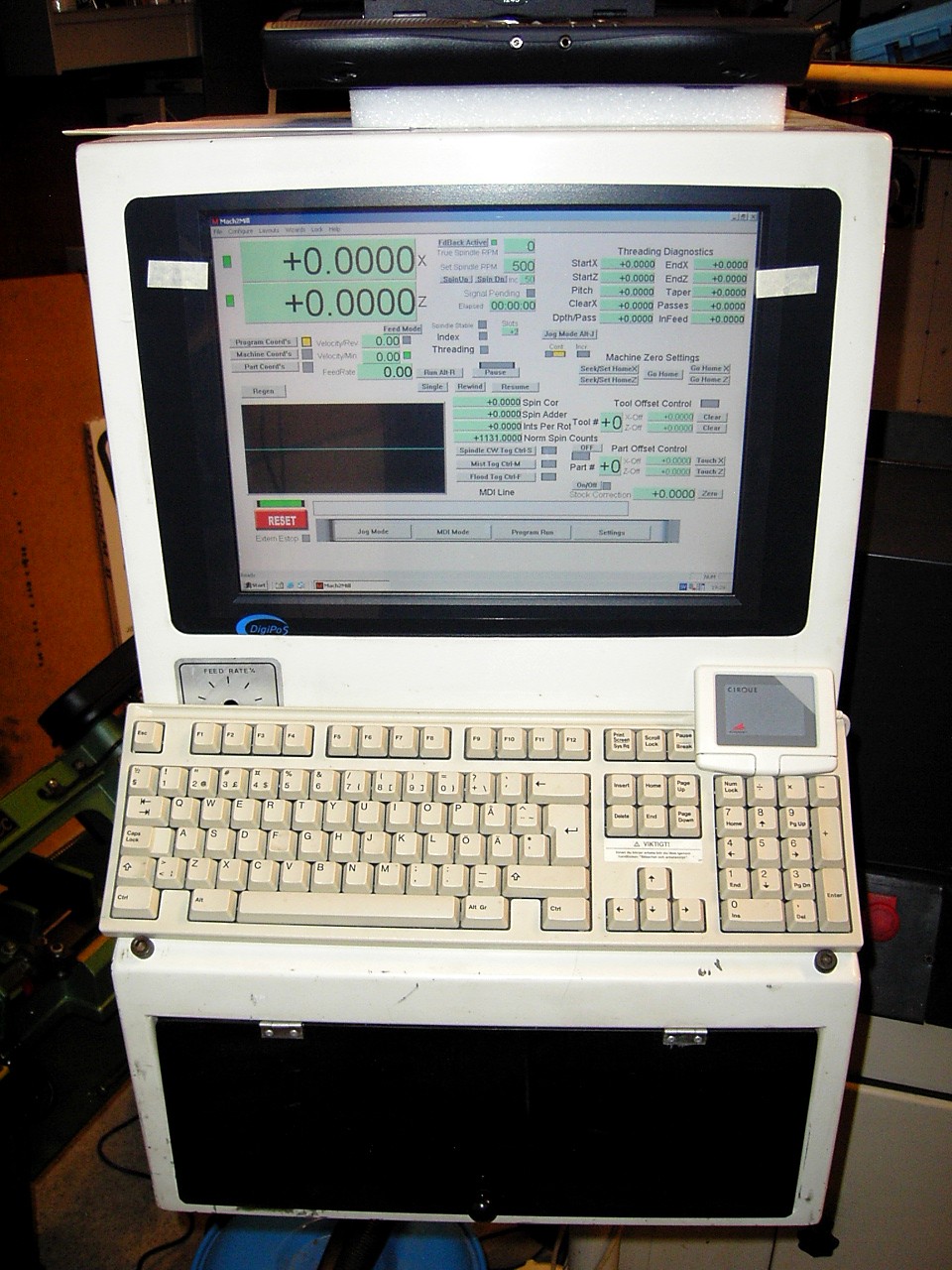

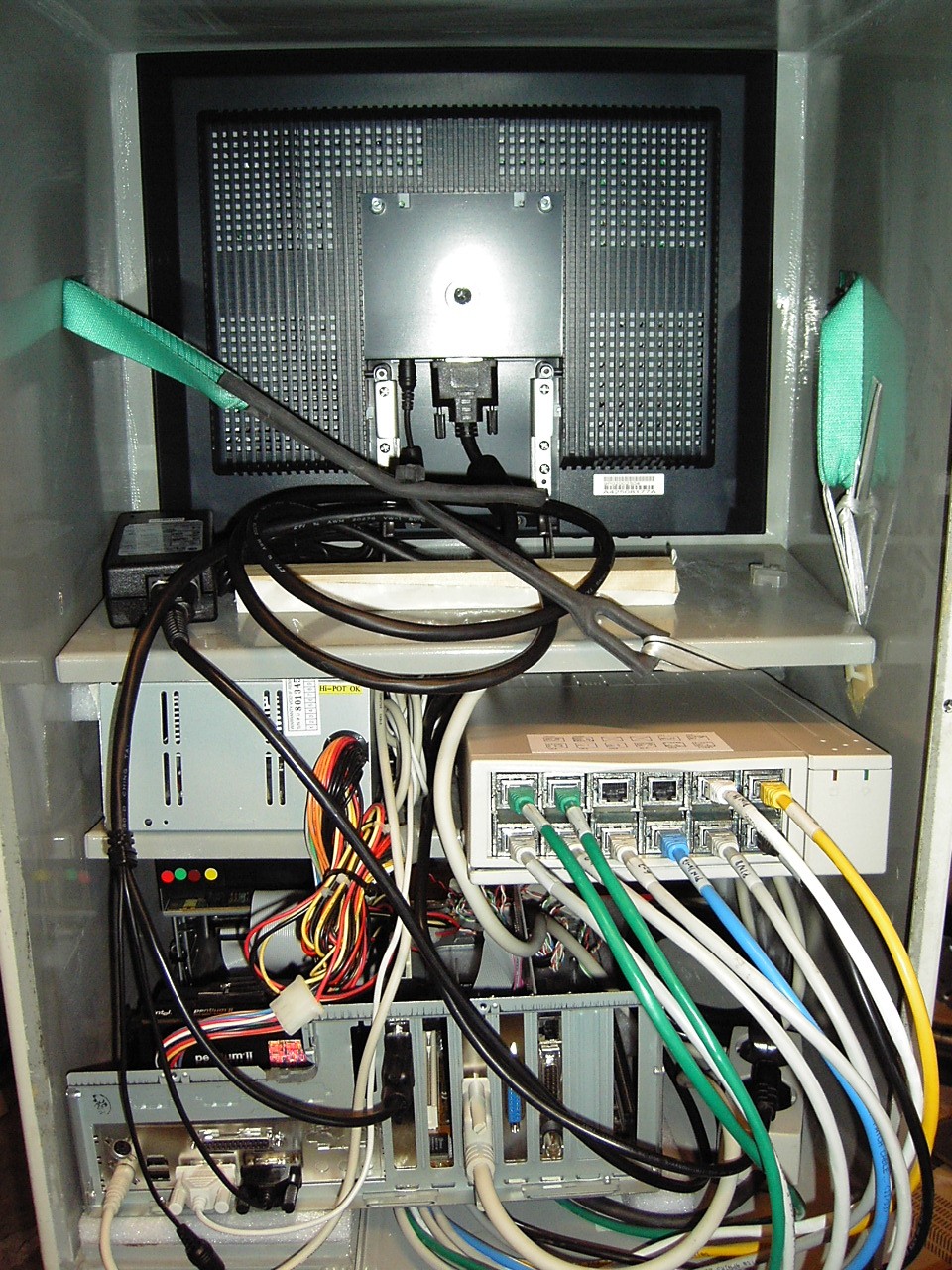

Control box (still ongoing modifications)

TFT screen with touch screen
(testing, it fits OK in this steel cabinet)

More details later on......

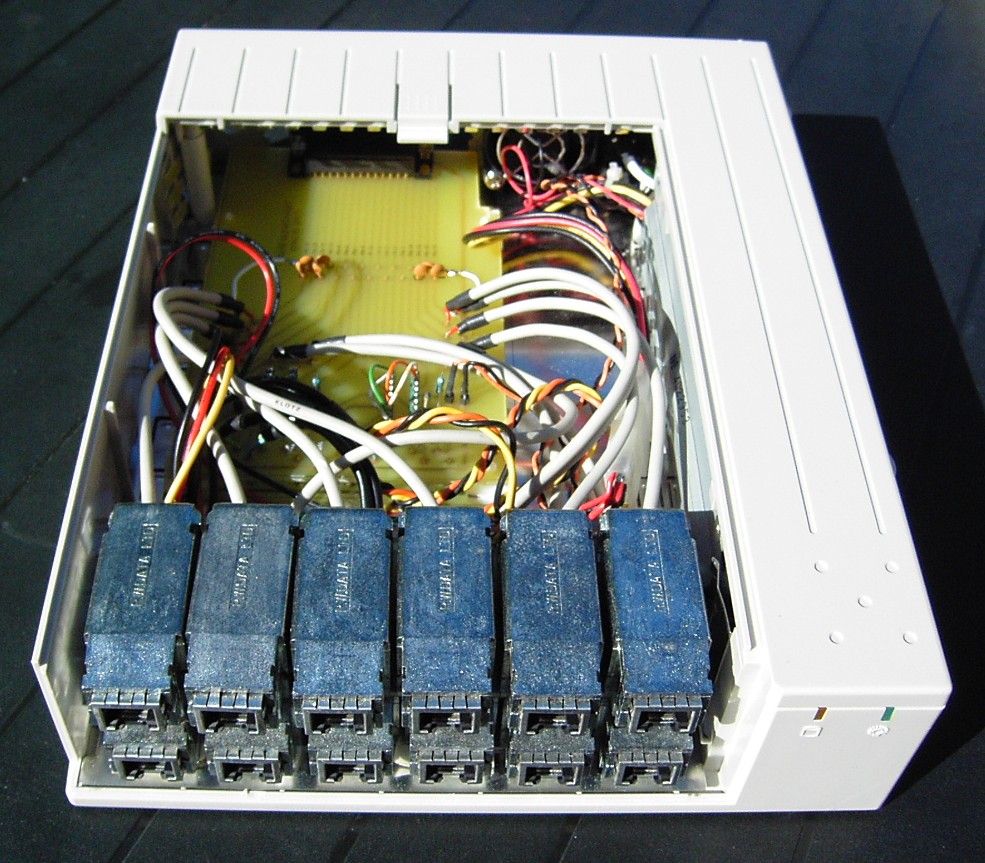

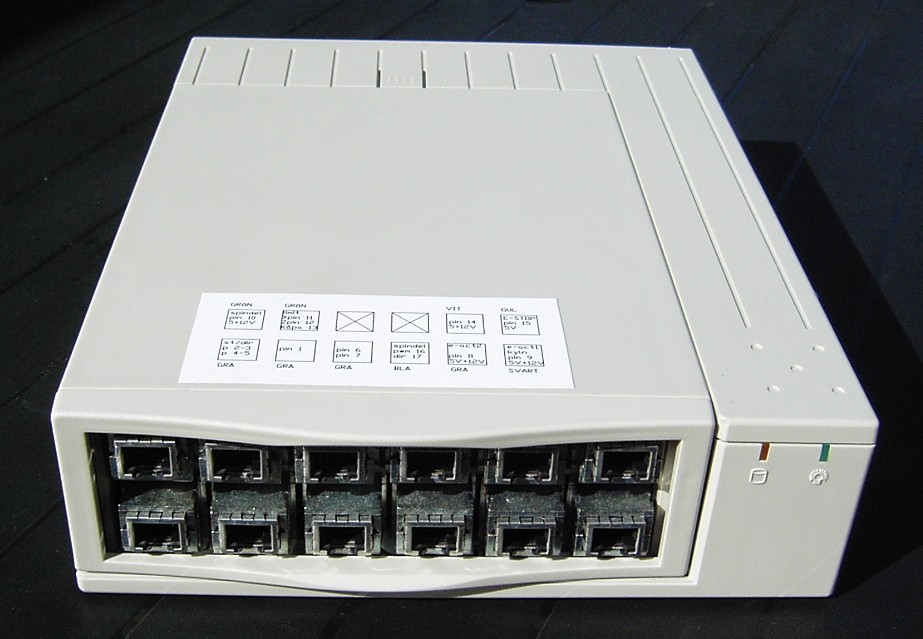

Above my *breakout-box*

At the back of the Lathe....(still ongoing modifications)

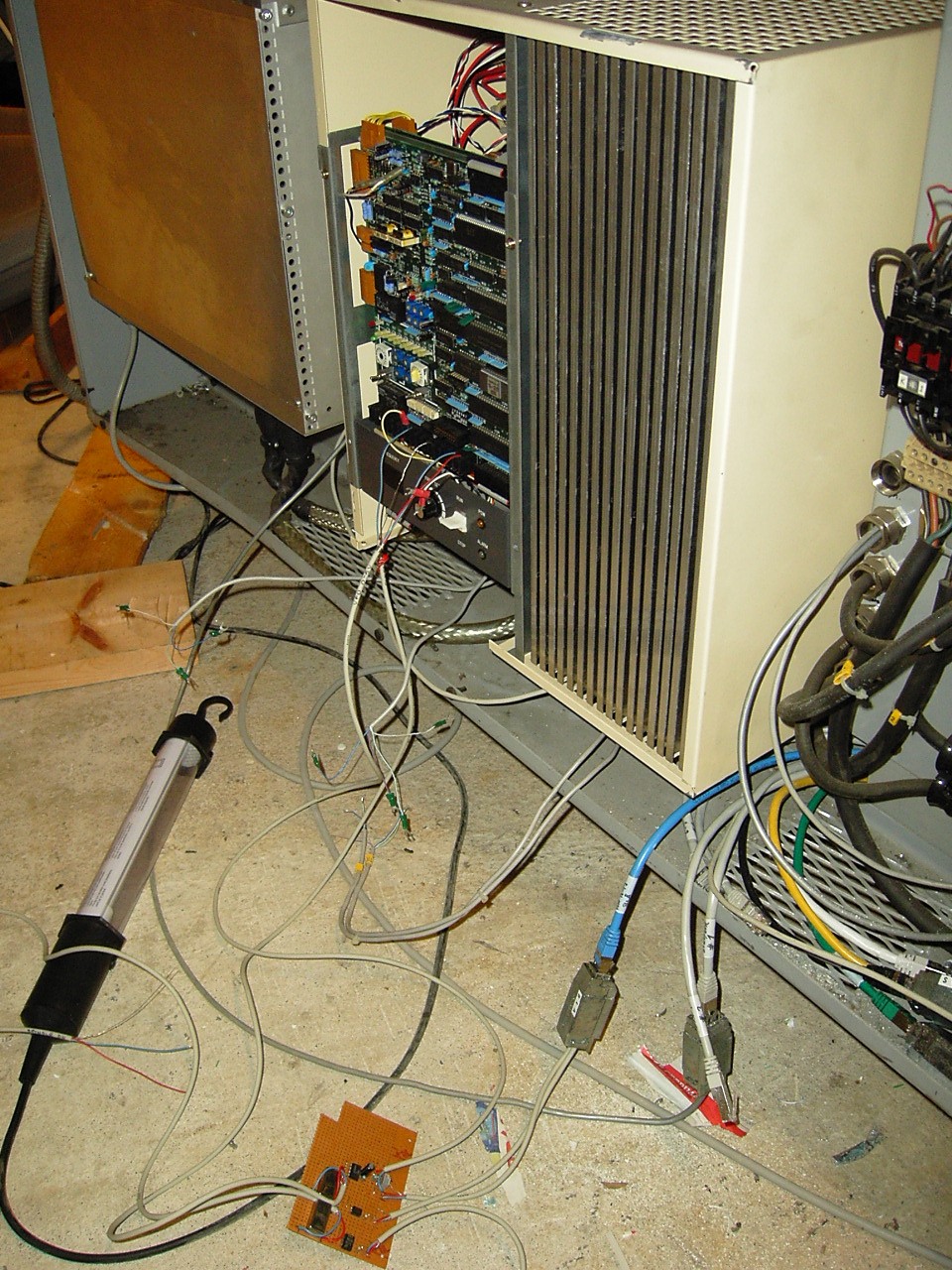

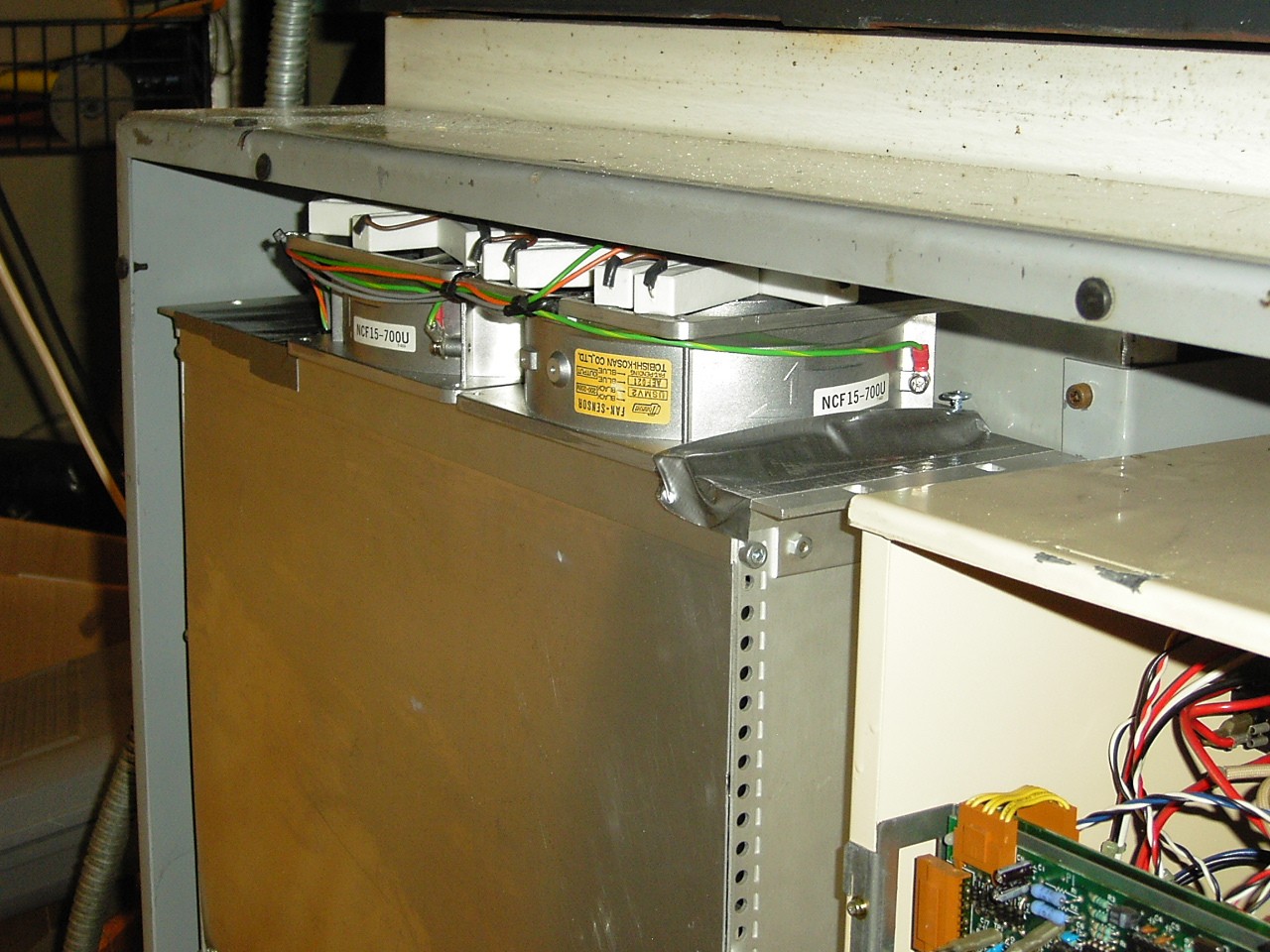

Driver box with PSU and                        VFD + test circuit for PWM                         Incoming power etc....
5-phase Berger Lahr drivers
BEMF handled via large
resistor packs on fans

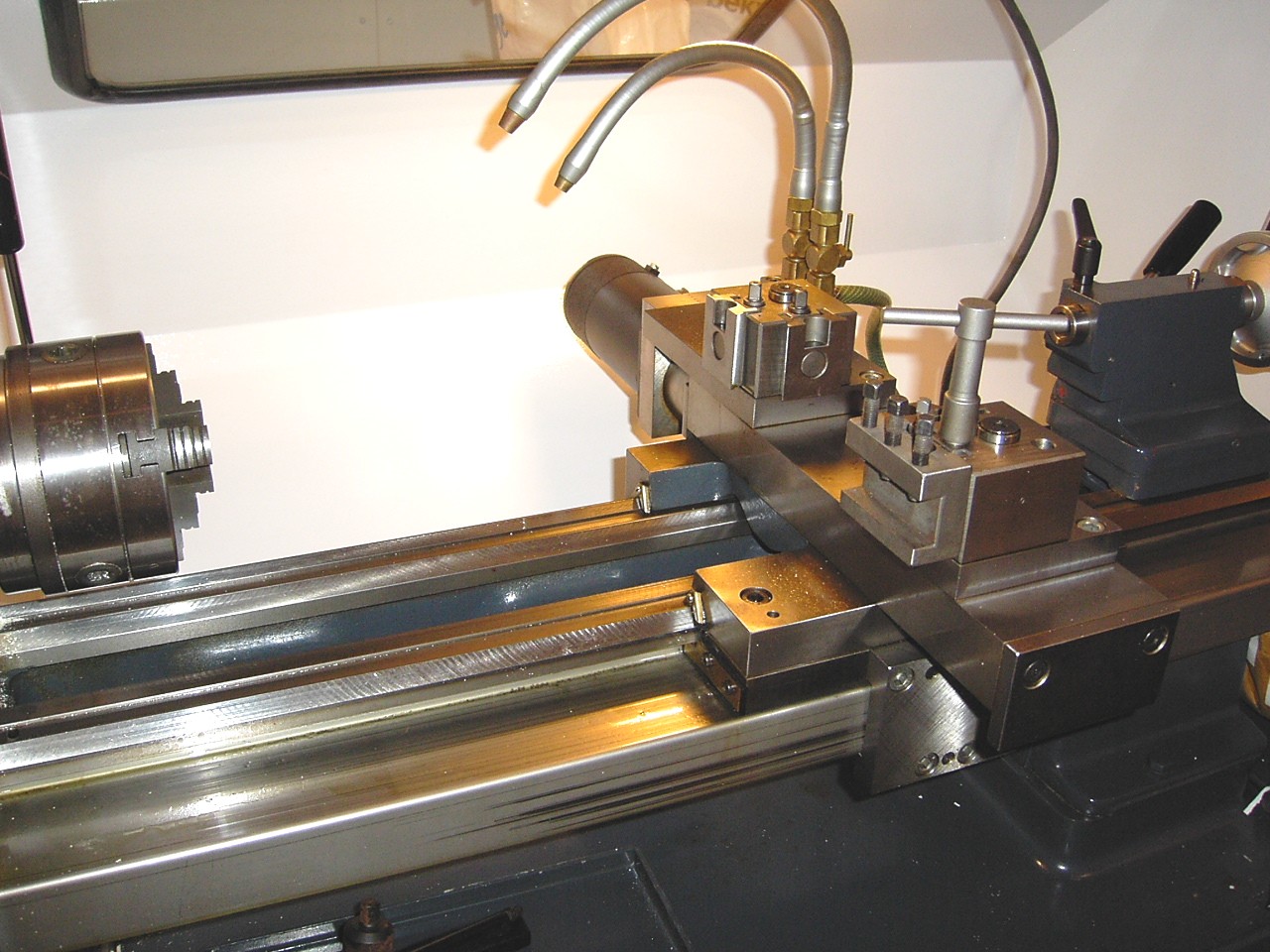

Toolposts

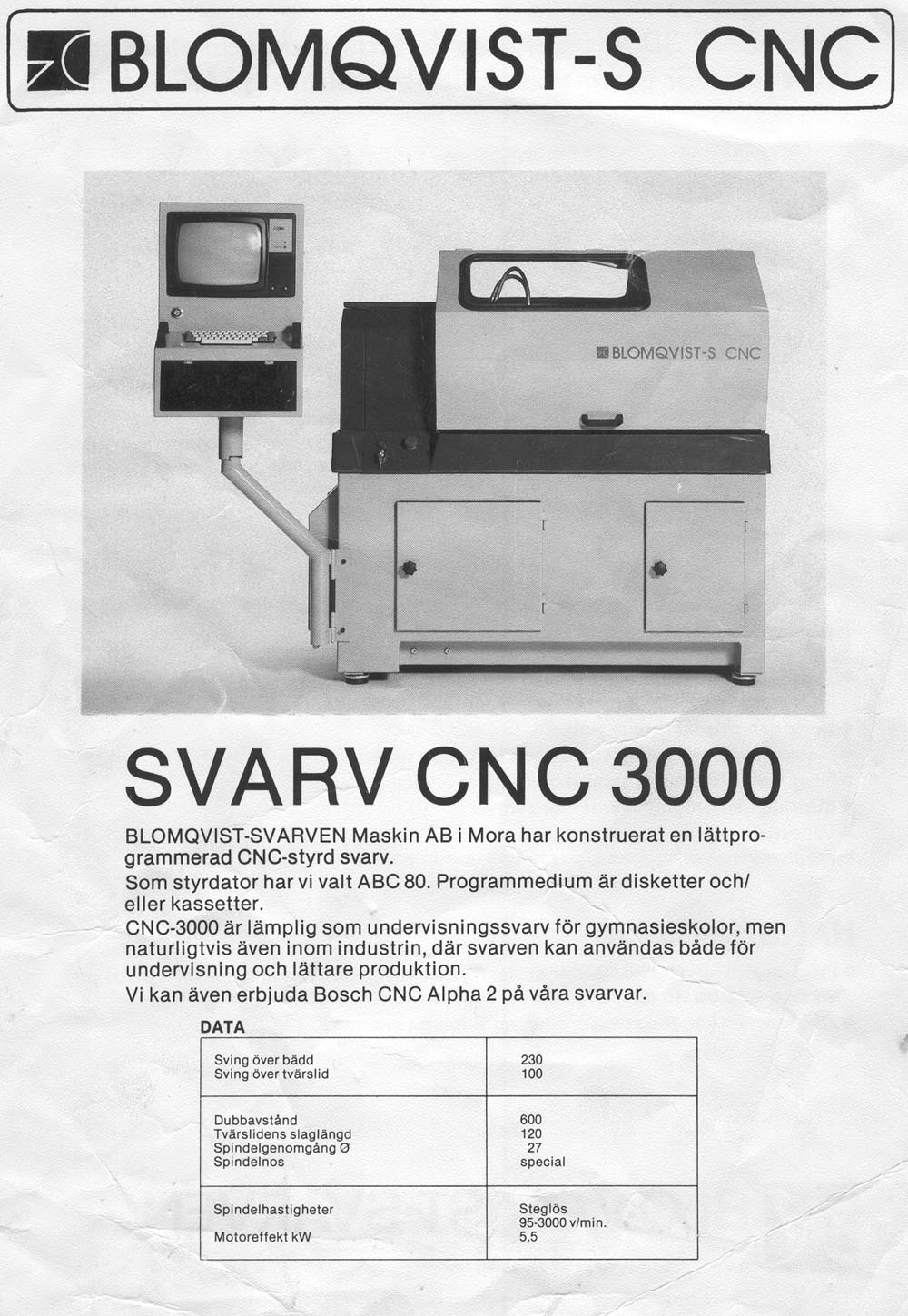

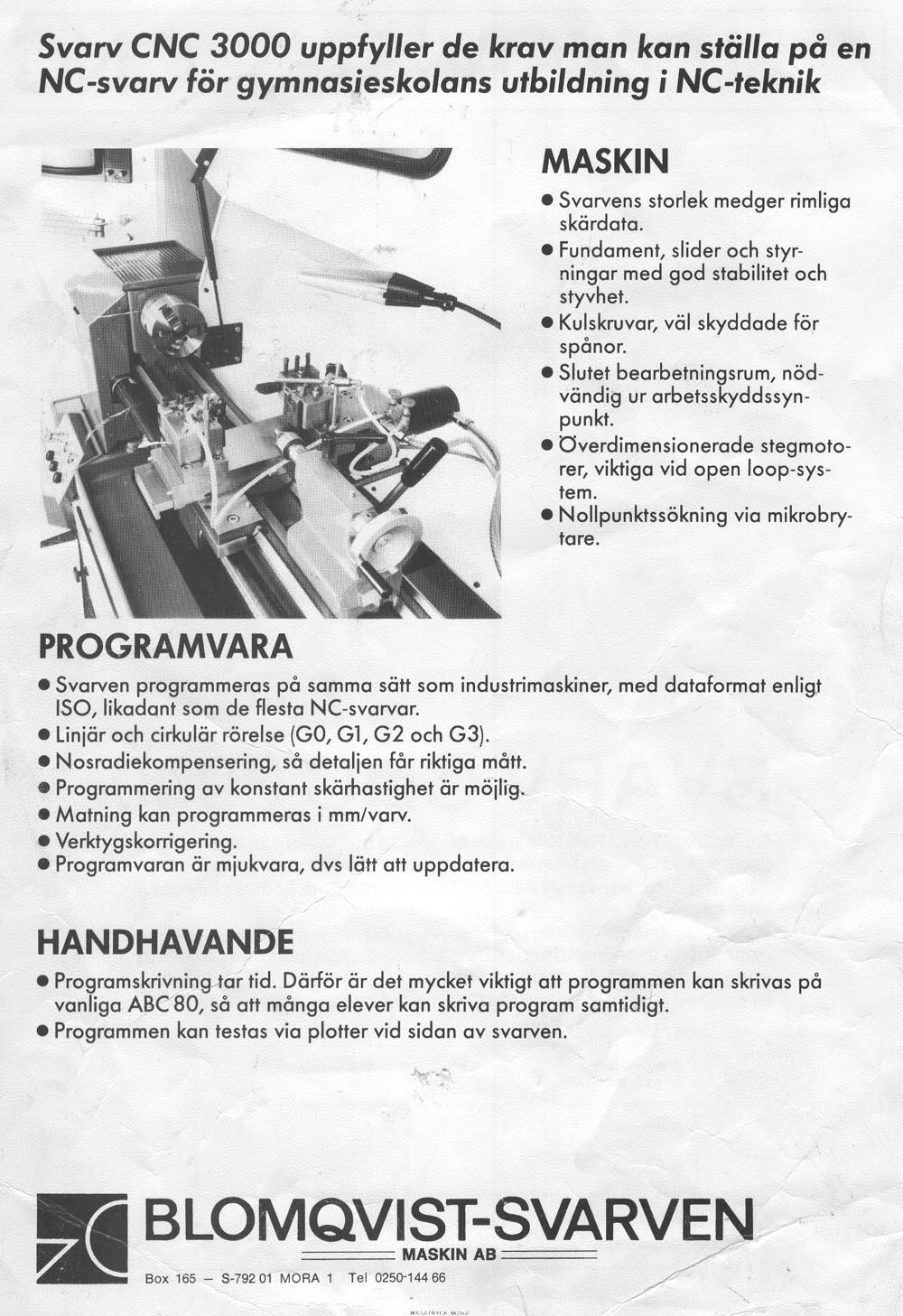

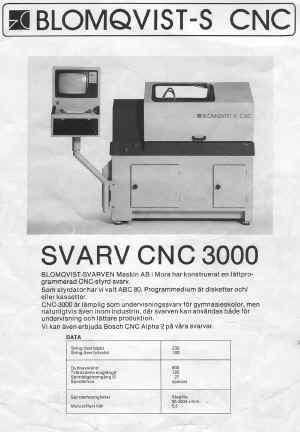

Copies of *original* sales brochures, sorry but this documentation is only in Swedish .
